Layouts

A layout is a skin: a folder under layouts/ holding a chassis.png and an inert ui.html. Five ship; more install through tLib's marketplace with no file edit and no restart.

Players pick a skin per device class in /tradar. Config.defaultRadarLayout, Config.defaultPlateLayout and Config.defaultRemoteLayout set what a new player starts with; an uninstalled name falls back to the first installed skin of that class.

Per-skin bands

Config.layoutBands gives one faceplate its own band, so a server can ship a Ka head and a K head without editing either. Faceplates print the band they are on.

Config.layoutBands = {
    ["KBX-2200"] = { band = "ka", frequency = 34.7 },
    ["SLX-1100"] = { band = "k" },
}

The shipped entries are KBX-2200 34.7 GHz, SLX-1100 35.5 GHz, CHX-800 33.8 GHz. A skin with no entry uses Config.band; omit frequency and the band's own default is used, never Config.frequency.

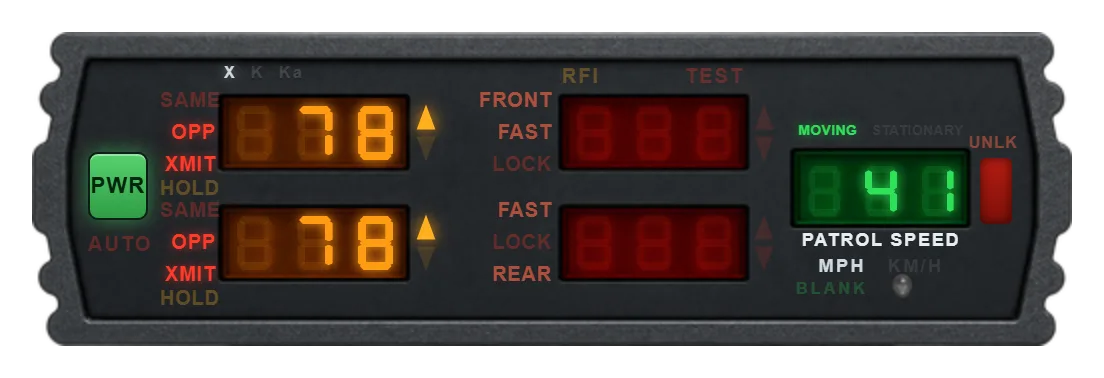

The same head on X and on K — the lit letter above the target window is the only change, and it is how an officer knows which gun they are holding:

Building your own

A layout declares what it is on its root element. That declaration — never the folder name — puts a skin in the right picker.

<div data-radar-device-class="plate" data-radar-width="420" data-radar-height="101">

Bind it to the live view with tLib's data-hud-* grammar.

The action list

data-hud-btn names one of these. Anything else is a build failure.

Interference

interference is published whenever the RFI sensor inhibits the target windows. Bind it, or a blanked skin reads as a broken unit:

<div class="rfi base">RFI</div>
<div class="rfi on" data-hud-led="interference">RFI</div>

The KBX-2200 and SLX-1100 carry one; the CHX-800 does not, and autolock:toggle is absent from it too. Keep it visually distinct from faulted: the shipped skins use amber for interference, red for a fault.

Blinking and reduced motion

Two shipped skins blink: the KBX-2200 flashes REAR while traffic is overtaking, and the PRX-400 flashes an alert-level plate flag. Nothing else on any face moves — reserve a blink for a state the operator has to act on.

If you do blink, write the reduced-motion variant in the same <style> block, because a skin that blinks and ships no variant keeps blinking:

@keyframes myskin-alert { 50% { opacity: 0.3; } }
.myskin .alert.active { animation: myskin-alert 0.7s steps(1, end) infinite; }

@media (prefers-reduced-motion: reduce) {
  .myskin .alert.active {
    animation: none; opacity: 1; text-shadow: 0 0 9px rgba(255, 176, 32, 0.9);
  }
}

Seven-segment digits

The view publishes one character per digit position — front.targetDigits.d0 and so on — and the layout decodes it in CSS with an attribute selector per numeral over seven clip-path bars. Unlit bars sit at 10% opacity, the ghost 888 a dark window shows.
