Layouts

Build a custom radar detector skin from HTML and CSS using the data-hud-* binding grammar.

A layout is a skin: a folder under layouts/ holding a module.json manifest, a ui.html entry point, and its images. Folders are auto-discovered on server start and appear in the HUD Layout selector in /tdetector.

Every element that changes carries a data-hud-* attribute and tLib's HudBinder writes state into it — the grammar tRadar's, tELS's and tRadio's skins also use. A skin decides only how it looks; the timing is shared.

Bundled layouts

Folder	Size	What it is
`RDX-8000`	480 × 197	Compact windshield unit, the default. Red-outlined speed box, one large block arrow, band / frequency / a skewed green-to-red segment meter
`RDX-4000`	480 × 211	Wide strip. Cyan chamfered speed tag, a cyan rule above a status row, and a stepped meter whose bars rise in height as well as colour
`ARC-360`	480 × 189	360-degree unit. Blue speed block, orange band tile, frequency over a red stepped meter. Direction is eight physical arrow lenses, not on-screen arrows

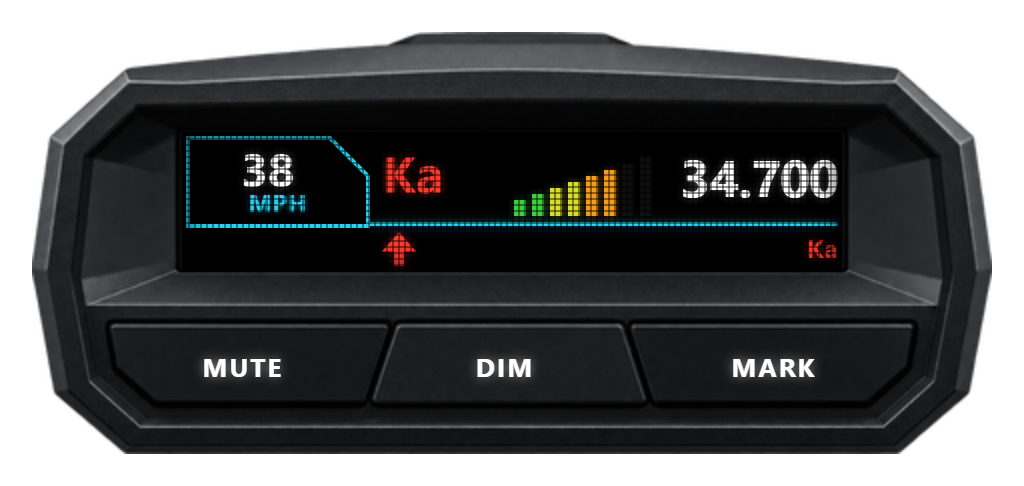

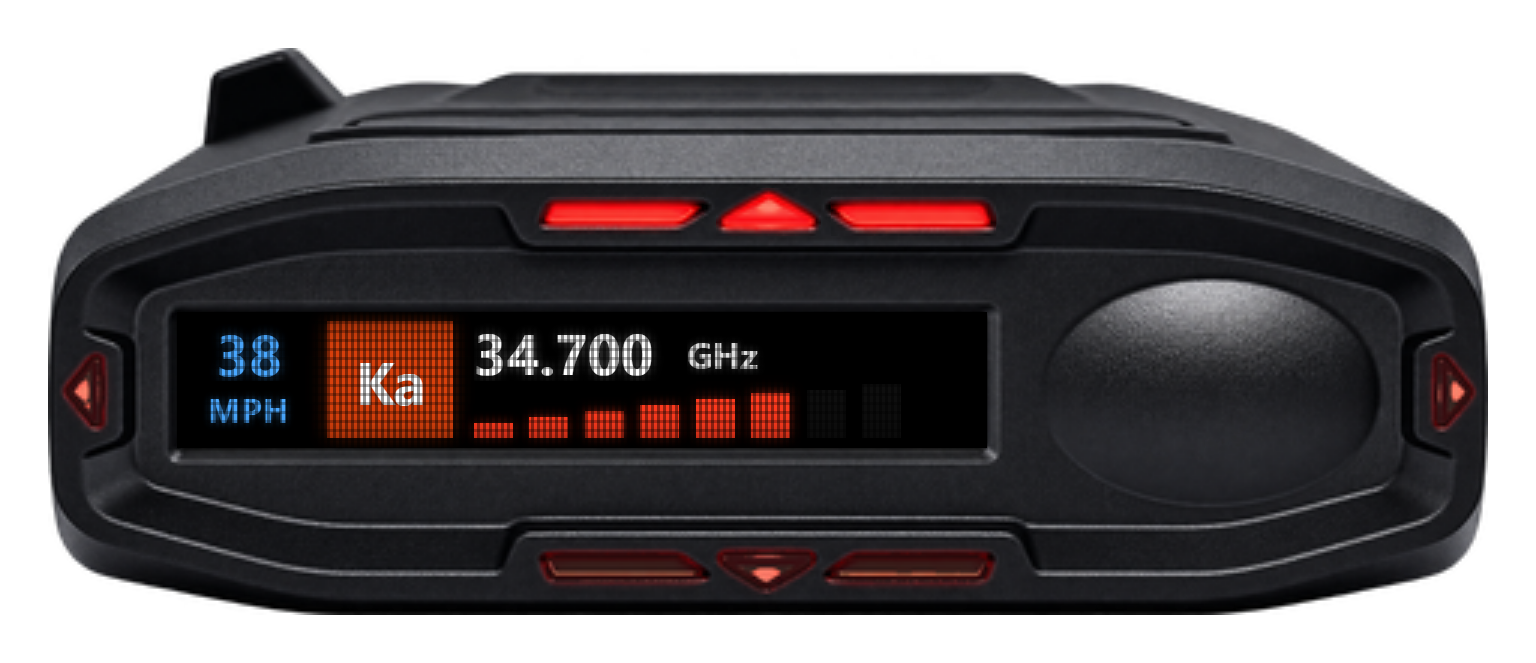

All three on the same alert — 38 MPH, Ka on 34.700 GHz, six of eight bars, source ahead:

All three are dot-matrix OLEDs: a .px overlay lays a black mesh on a 2–3px pitch, and each lit element carries a text-shadow or box-shadow halo. Keep both — and nothing below ~12px is legible.

Folder structure

A layout folder holds module.json, ui.html and its images; layouts/sounds/ holds the shared .wav files, which every layout uses. Image src attributes are rewritten to absolute before injection, so use relative paths. Sounds are not a layout's concern — they are mapped in /tdetector → Sounds.

The binding grammar

Attribute	Effect
`data-hud-text="key"`	`textContent` becomes `state[key]`
`data-hud-show="key"`	Visible while `state[key]` is truthy
`data-hud-hide="key"`	Hidden while `state[key]` is truthy
`data-hud-eq="key:value"`	Gains `.active` while `state[key] === value`
`data-hud-led="key"`	Gains `.active` while `state[key]` is truthy
`data-hud-html="key"`	`innerHTML` becomes `state[key]`
`data-hud-attr="key:attr"`	Sets `attr` to `state[key]`; removes it when null, `""` or `false`
`data-hud-led-color="key"`	`backgroundColor` from an `{ r, g, b, a }` value
`data-hud-btn="action"`	Click sends `action` to Lua — `mute`, `dim` or `mark`

Reach for the first six: no tDetector state key is an { r, g, b, a } colour, and data-hud-text covers what data-hud-html would. In play the HUD takes no pointer events, so data-hud-btn regions are reachable only in the HUD editor and the marketplace preview.

State keys

The keys the driver emits.

Key	Type	Description
`powered`	boolean	Detector on and the player is in a vehicle
`boot`	string	`"logo"`, `"selftest"`, `"sweep"`, `"gps"`, or `""` once complete
`idle`	boolean	Powered, booted, nothing detected
`alert`	boolean	A radar source is being tracked
`bandKey`	string	`"ka"`, `"k"`, `"x"`, `"laser"`, or `""`
`bandLabel`	string	The same band as printable letters (`"Ka"`)
`freqText`	string	Frequency in GHz, e.g. `"34.712"`
`bar1` … `bar8`	boolean	Signal strength, lit cumulatively
`speedText`	string	Rounded speed
`unitLabel`	string	`"MPH"` or `"KM/H"`
`arrowFront` `arrowRear` `arrowLeft` `arrowRight`	boolean	Direction; flashes in time with the blip
`muted`	boolean	Alerts silenced
`dim`	boolean	Display turned down, across the whole HUD
`multiThreat`	boolean	More than one source is audible
`bogeyText`	string	How many, e.g. `"3"`. Empty while idle.
`modeKey`	string	`"constant"`, `"instant"`, or `""` — for `data-hud-eq`
`modeLabel`	string	`"I/O"` for instant-on, empty for constant-on

Create a layout

Create the folder

layouts/MyLayout/ — the folder name is what players see in the layout selector.

Add `module.json`

json

{
  "schema": 1,
  "kind": "layout",
  "id": "MyLayout",
  "name": "My Layout",
  "version": "1.0.0",
  "author": "You",
  "license": "UNLICENSED"
}

id must equal the folder name exactly, version must look like 1.2.3, and kind must be "layout". Each is rejected outright rather than warned about, and sounds and themes are reserved.

Add `ui.html`

One root element with fixed pixel bounds, its own <style> block, and the markup. Declare data-radio-width / data-radio-height on the root: the marketplace preview sizes its canvas from them, and the HUD editor needs them to place the skin.

Add images, then restart

ini

restart tDetector

Geometry a skin must provide

The HUD editor measures the injected container's unscaled, in-flow bounds: RDX-8000 is 480 × 197, RDX-4000 480 × 211, ARC-360 480 × 189.

A skin must keep a stable, intrinsic, in-flow footprint, not draw outside it, and not size itself in viewport units.

Minimal example

html

<div class="ui-root det" data-radio-width="200" data-radio-height="80"
     style="position:relative;width:200px;height:80px;">
  <style>
    .det { background: #111; color: #0f0; font-family: monospace; }
    .det .row { position: absolute; left: 10px; }
    /* eq elements toggle a class, so they may start hidden */
    .det .boot { position: absolute; inset: 0; display: none; }
    .det .boot.active { display: block; }
  </style>

  <div class="boot" data-hud-eq="boot:logo">MY DETECTOR</div>
  <div class="row scan" data-hud-show="idle">Scanning…</div>
  <div class="row band" data-hud-show="alert" data-hud-text="bandLabel"></div>
  <div class="row freq" data-hud-show="alert" data-hud-text="freqText"></div>
  <div class="row speed" data-hud-show="powered" data-hud-text="speedText"></div>

  <div data-hud-btn="mute" role="button" tabindex="0"
       style="position:absolute;right:6px;bottom:6px;width:30px;height:20px;"></div>
</div>

UI Studio

Build and publish custom layouts with the UI Studio — drafts, design vs HTML mode, lint rules, bundle limits, forking and publishing are all in the Studio itself.

Next steps

Reference — the sound slots a skin's alerts play through.
Usage — what each readout means to the player you are designing for.
